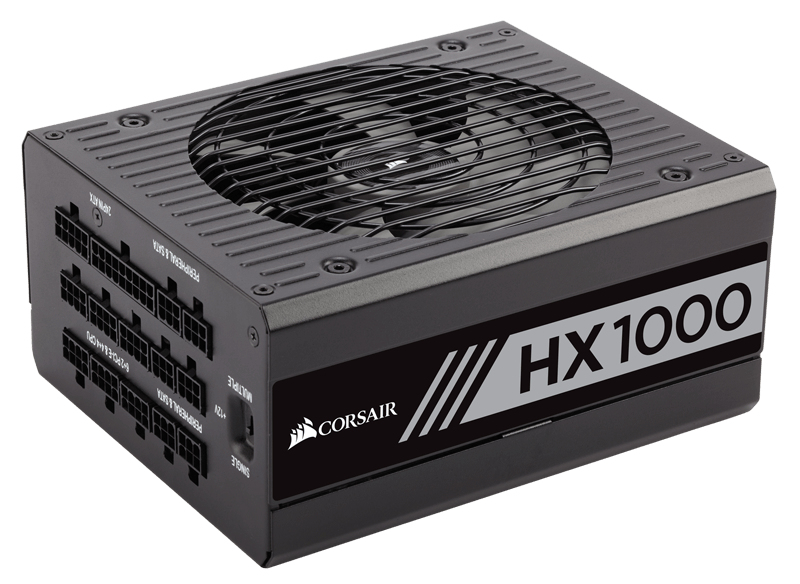

Platinum efficiency, fully modular and virtually silent CORSAIR HX series power supplies give you extremely tight voltage regulation, quiet operation, Platinum-certified efficiency, and a fully modular cable set. Built with all Japanese 105?C capacitors, they?re a great choice for high performance PCs where reliability is essential.
Quiet, efficient operation 80 PLUS Platinum efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads.
100% Japanese 105?C capacitors Premium internal components ensure solid power delivery and long term reliability.
Zero RPM Fan Mode Since the fan doesn?t turn on until it?s needed, you?ll enjoy virtually silent operation at low and medium loads.
Specificaties

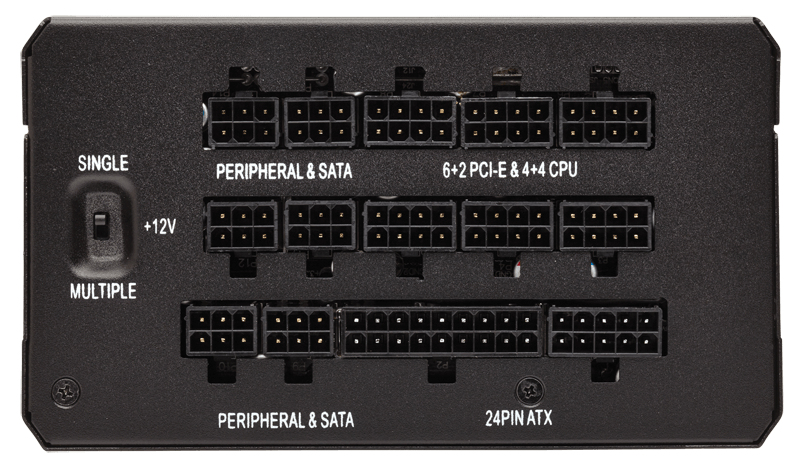

Poorten & interfaces
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
8
Lengte stroomkabel moederbord
61 cm
Aantal SATA power connectors
8
Lengte SATA-stroomkabel
450,800 mm
Lengte stroomkabel randapparaat (Molex)
450,550,650,750 mm
EPS power connector (8-pin)
PCI Express power connectors (6+2 pin)
8
Lengte PCI Express-stroomkabel
67,5 cm
Floppy drive power connector
1
Lengte kabel diskettestation
10,1 cm
Bekabelingstype
Modulair
Gewicht en omvang
Breedte
150 mm
Diepte
180 mm
Hoogte
86 mm
Gewicht
1,95 kg
Energie
Totaal vermogen
1000 W
AC invoer voltage
100 - 240 V
AC invoer frequentie
47 - 63 Hz
Stroom
10 A
Gecombineerd vermogen (+3.3V)
150 W
Gecombineerd vermogen (+12V)
1000 W
Gecombineerd vermogen (+5V)
150 W
Gecombineerd vermogen (-12V)
9,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
25 A
Max huidige output(+12V)
83,3 A
Max huidige output (+5V)
25 A
Max huidige output (-12V)
0,8 A
Max huidige output (+5Vsb)
3 A
Stroomspanning bescherming
Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning
